Designed and built for the demanding and rough environments.
Model Number: 90-103324

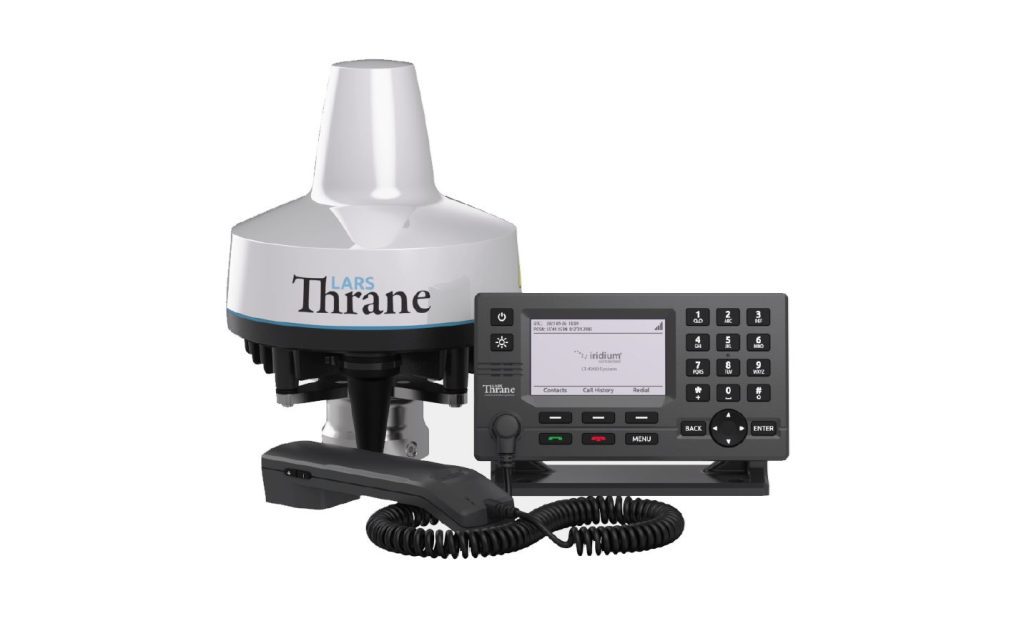

The LT-4200L system has voice and data capabilities with 100% global coverage provided by the Iridium® Network. The LT-4200L system consists of a control unit, antenna unit, handset, and cradle.
A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites.
The LT-4200L system can be used as the primary satellite communication product, covering the basic communication needs in terms of connectivity. The LT-4200L system offers 3 high quality voice channels, and IP-data 176 kbps (up) / 176 kbps (down), making it the perfect satellite communication product for numerous fixed land scenarios – such as, back up comms for disaster recovery, business continuity or isolated locations, remote lodges/cabins.
IP rating, dust and water
IP32
Peso
0.67 kg (1.48 lbs)
Dimensiones de la antena
238.7 x Ø 224.6 mm (9.40 x Ø 8.84 in)
Antenna Communication Cable
Coaxial cable, up to 150 m (500 ft)
Weight Antenna
3.70 kg (8.16 lbs)
IP rating, dust and water (antenna)
IP67
Dimensiones
224,0 x 120,0 x 70,0 mm (8,82 x 4,72 x 2,76 pulg.)
Temperatura de funcionamiento
40°C to +55°C (-40°F to +131°F)
Temperatura de funcionamiento
-5˚ C a +55˚ C con batería
Weight (Handset and Wire)
0.30 kg (0.66 lbs)
Dimensiones de la antena
238.7 x Ø 224.6 mm (9.40 x Ø 8.84 in)
Dimensiones del teléfono
52,8 x 208,8 x 38,2 mm (2,08 x 8,22 x 1,50 pulg.)
Ethernet
DC input
Bluetooth
Chassis ground antenna unit
Auxiliar
Handset
SIM Card
Con una sólida formación en ingeniería de comunicaciones por satélite y experiencia en el desarrollo de equipos de comunicaciones y navegación marítima, LT A/S introduce productos de alto rendimiento en el mundo marítimo del mañana. Sus productos son para el mercados marítimos profesionales y de ocio.
